1,Description: For glass tank furnace bottom paving,the Glass Tank Block is a new product developed and produced by us and our factory in recent years.the product is composed of dense layer and heat insulation layer. The dense layer effectively meets the working requirements of the bottom, while the heat insulation layer effectively reduces the heat loss of the bottom, increases the temperature of the liquid glass, and saves the production cost. The density of the insulation layer is 65-70% of that of the compact layer, and the thermal conductivity is 35-40% of that of the compact layer. After the product is used by users, the composite energy-saving brick can save 25-35% energy than the traditional clay brick, which not only improves the production efficiency, but also reduces the cost.
2,Main technical parameters of Glass Tank Block
ITEM | UNIT | Working layer | Insulation layers |
Al2O3 | % | ≥45 | ≥43 |
Fe2O3 | % | ≤1.5 | ≤1.5 |
R2O | % | ≤1.0 | ≤1.0 |
Density | g/cm3 | ≥2.20 | ≤1.5 |
Porosity | % | ≤18 | ≤50 |
Cold crushing strength | Mpa | ≥50 | ≥20 |
Refractoriness | ℃ | 1750 | 1730 |
Refractoriness under load | ℃ | ≥1400 | ≥1250 |
Change rate of reheating line 1000℃*2h | % | ±0.1 | ±0.3 |
Thermal conductivity 1000℃ | W/m.k | ≤1.10 | ≤0.42 |

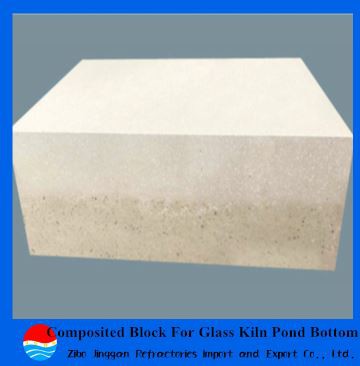

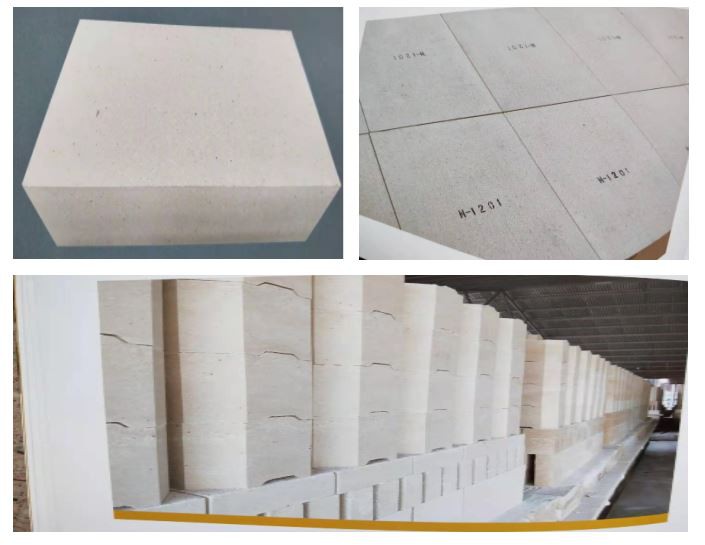

Product photos
3,Characteristics of Glass Tank Block:
1) The product is composed of dense working layer and heat insulation layer, which effectively reduces the heat storage capacity of the product, improves the temperature in the molten pool, and improves the product quality and productivity
2) The energy-saving effect is more significant than that of full heavy products, and the production cost is saved
4,Application:Applied to the bottom of glass tank furnace.
5,Our company promises to customers: to provide free technical exchanges and services with customers, and to provide samples to customers free of charge without any sample fees.
6,Achievements generated: Our company has previously shipped 100 tons to Japan.
