1, Features of Polyester Fiber Sound Absorption Board:
1) The products have more than 40 colors, which can be assembled into various patterns,the shapes include plane, square, wide strip and thin strip,the products can be bent into curved surface shape, making the interior design more effective.
2) There are a large number of tiny connected pores in the product,the sound wave penetrates into the interior of the material along these pores, and the sound energy is converted into heat energy to achieve sound absorption effect.
3) It is non-toxic and tasteless, with a very low formaldehyde emission of 0.05mg/L.
4) Good toughness, impact resistance, tear resistance and wear resistance.
5) Thermal insulation.
6) Flame retardant, fire rating B1 grade.
7) Easy to process and maintain.
2, Application: conference room, KTV room, concert hall, gymnasium, business hall, TV, interior decoration, etc.
3, Specification:2440 *1220*(5-20)mm

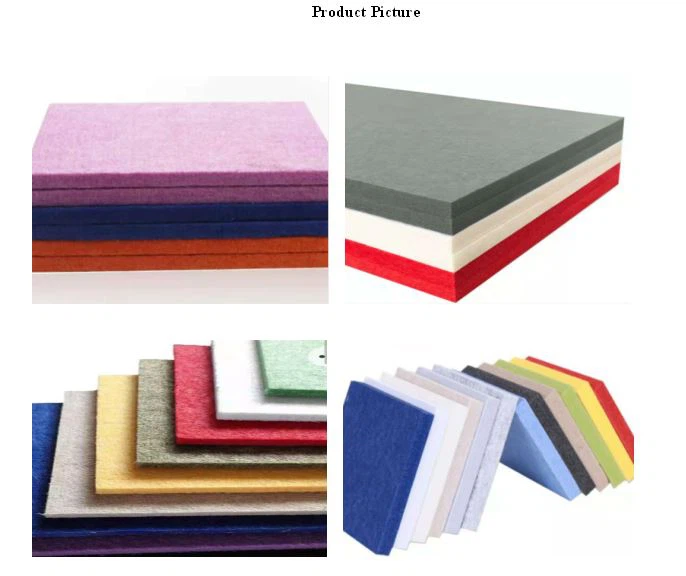

![0{PVO~IOA0MTY`XSW]{X$IM](/Content/uploads/2021433345/202104081023340b706b18a9e249219bc596c88adacaf0.png)
4, Main parameters of products
ITEM | UNIT | TECHNICAL INDEX |
Sound absorption coefficient | 0.8-1.10 | |
Density | Kg/m3 | 225 |
Fire resistance | B1 grade | |
Formaldehyde emission | Mg/L | ≤0.05 |
Environmental protection level | E1 grade | |
Environmental protection and temperature insulation performance | Good | |
Resistance to tearing | Excellent |
5, Table of sound absorption coefficient
Frequency(HZ) | 125 | 250 | 500 | 1000 | 2000 | 4000 |
Sound absorption coefficient of 9mm thick plate | 0.09 | 0.35 | 0.74 | 0.96 | 0.75 | 0.94 |
Sound absorption coefficient of 5mm thick plate | 0.07 | 0.23 | 0.58 | 0.95 | 0.83 | 0.94 |
6,Noise reduction coefficient table
ITEM | Noise reduction coefficient(NRC) |
9mm thick board,density 229kg/m3, Posterior cavity 200mm | 0.95 |
9mm thick board,density 229kg/m3, Posterior cavity 100mm | 0.925 |
9mm thick board,density 229kg/m3, Posterior cavity 50mm | 0.7 |
7,Our company promises to customers: to provide free technical exchanges and services with customers, and to provide samples to customers free of charge without any sample fees.
8,Achievements generated: Our company has previously shipped 70 tons to South Africa.
