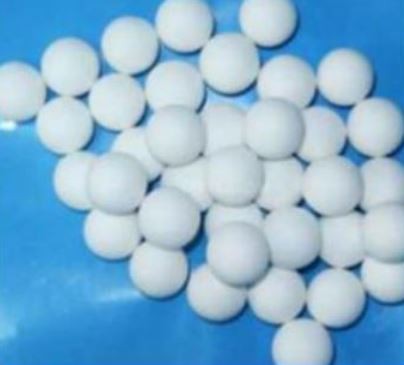

1,Description of Mullite Regenerative Ball For Hot Blast Furnace
Regenerative ball, also known as spherical regenerator, is made of Al2O3, kaolin and mullite sand as the main raw materials.there are two kinds of rolling forming and press forming.The product has the advantages of high heat storage, high strength, easy cleaning and reusable. It is suitable for regenerative heat exchange system of industrial furnaces with gas and non-gas fuels.
2,Principle of Mullite Regenerative Ball For Hot Blast Furnace use:
many regenerative balls divide the air flow into very small streams,When the air flow passes through the regenerator, it forms a strong disorder and effectively breaks through the boundary layer on the surface of the regenerator.Because the sphere diameter is very small, the conduction radius is small, the thermal resistance is small, the density is high, and the thermal conductivity is good, the requirement of rapid reversal of heat storage can be realized.
3,Product Characteristics:
1) High Strength and Wear Resistance
2) High thermal conductivity and capacity
3) High efficiency of heat storage
4) Good thermal stability
4,Product application:
The product is especially suitable for air separation equipment of hot blast stove.
5,Product Specification: φ13~φ25mm
6,Index:
ITEM | JXRQ-60 | JXRQ-75 |
Al2O3 % | ≥60 | ≥75 |
SIO2+Al2O3 % | ＞93 | >98 |
Fe2O3 % | ≤1.5 | ≤1.2 |
B.D g/cm3 | ≥2.2 | ≥2.5 |
Accumulate volume-weight kg/m3 | 1400-1500 | 1600-1700 |
Specific surface area m2/m3 | 200-220 | 200-220 |
Mohs hardness | ＞7 | ＞9 |
Thermal shock resistance stability 1100℃ water-cooling times | ≥30 | ≥15 |
Service temperature ℃ | ≤1450 | ≤1500 |
Apparent porosity % | ≤23 | ≤24 |
Cold crushing strength KN | ≥12 | ≥15 |
Refractoriness under load ℃ | ≥1430 | ≥1480 |
7.Good feedback of product use effect,the products have been exported to South Korea, Japan, Pakistan, Russia, Australia, Oman, the United States, Kenya, Mexico, Morocco and India.
8.We are a professional supplier, who can provide customers with free product technology, use and other issues.
