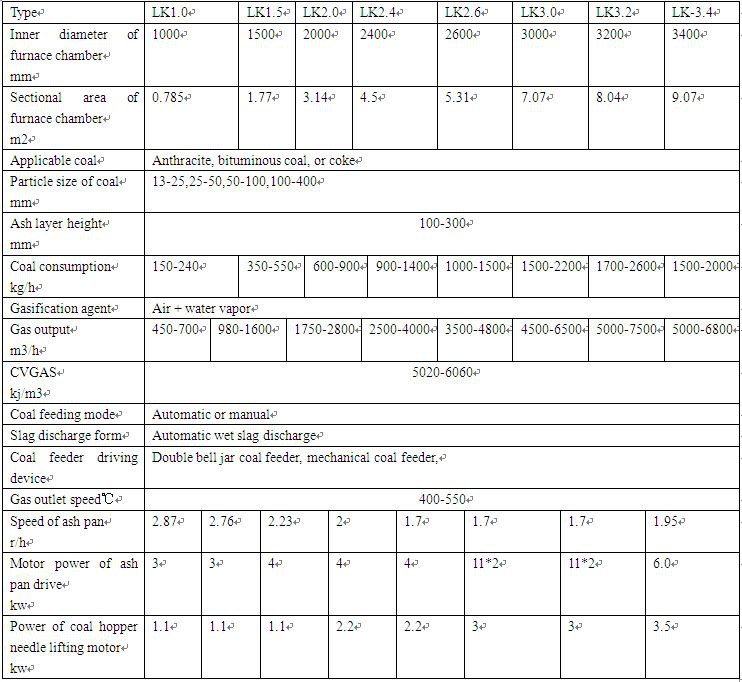

1,Technical index of Single stage hot coal gas producer

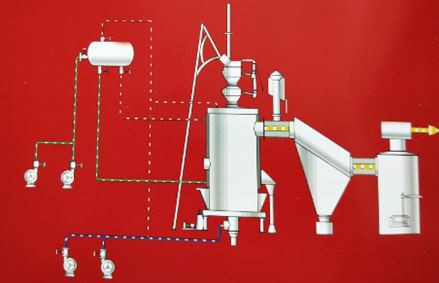

2, Process flow chart of Single stage hot coal gas producer
Description: lump coal is added from the top of the furnace and moves downward with the operation of the gas furnace. After meeting with the emulsifying agent (air + steam) entering from the bottom of the furnace, it is heated by the high temperature gas in the fuel layer at the bottom of the furnace to generate physical and chemical reactions to produce hot gas. The temperature is 450-550 ℃ and directly supplied to the combustion equipment after dust removal

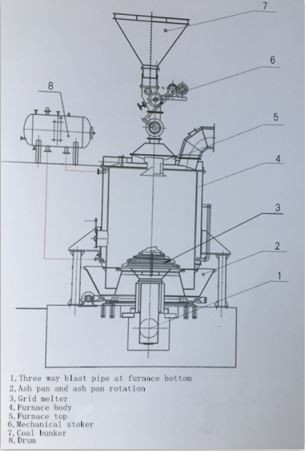

3,Structural system diagram of single stage hot coal gas producer

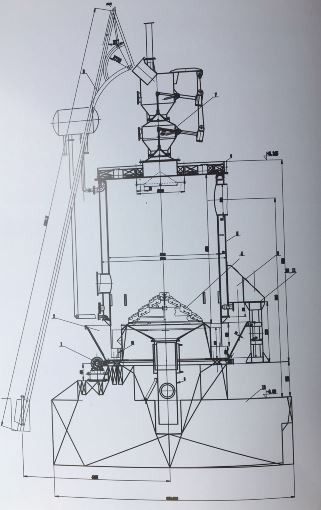

4,Structural charts drawing of single stage hot coal gas producer
5,Process flow chart of wet gas desulfurization
Description: after dedusting and cooling, the gas enters the desulfurization tower from the lower part of the desulfurization tower, and meets with the desulfurization liquid sprayed from the top of the tower, so as to react to remove The H2S rich liquid is discharged from the bottom of the desulfurization tower and stored in a rich tank. The liquid is sprayed into the regeneration tank by the pump. The sulphur foam floating in the regeneration tank flows to the sulfur foam tank and is pumped to the filter press to produce the cake.
6.Our ability: we have designed and manufactured gas generator for more than ten years, with mature technology, perfect technology and environmental protection meeting the standard requirements. We have a skilled construction and installation team to install the furnace body and accessories in good condition at the user's site, deliver them to the user, and provide the gas furnace operation technology and technical specifications for the user free of charge until the user has fully mastered the operation technology and produced qualified gas. We can provide users with more than 10 sets of various models of products every year, exported to nearly 10 countries and regions, and have been well received by users.
7, Attached drawings
一,1500m3 gas storage tank

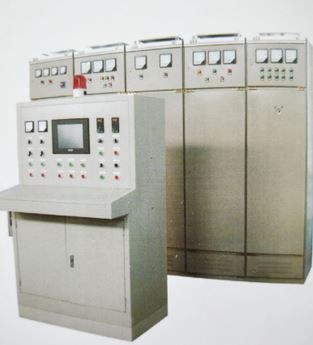

二, Thermal instrument cabinet in operation room of gas station
三, Panorama of gas station
Our company promises to customers: to provide free technical exchanges and services with customers, and to provide samples to customers free of charge without any sample fees.
Achievements generated: Our company has previously shipped 60 tons to Tunis.
