RP Graphite Electrode

RP graphite electrode, also known as ordinary power graphite electrode, has specifications of RP75,RP100,RP150,RP200 etc. the resistivity of RP graphite electrode products supplied by our company is generally ≤ 9 μ Ω· m, Lower than the standard value 11*-12μ Ω•m required by customers, that is, the quality of our products should be better than that required by customers, and the use effect is good.

Send Inquiry

Download

Chat Now

Description

1,Description of RP Graphite Electrode
This product is produced with ordinary grade petroleum coke. It has low graphitization temperature, high resistivity,high expansion coefficient, poor thermal shock resistance and low permissible current density.
The graphite electrode products we supply are used in roughing furnace and refining furnaces.The product quality grade is RP.They are divided into various specifications according to their diameters and lengths. It is a good conductive and heat conductive high temperature product for steelmaking.
The product we supply has a low consumption rate per ton of steel.in roughing furnace,the consumption rate of RP product per ton steel is less than 4 kg,and in refining furnace,the consumption rate of RP product per ton steel is less than 2.5kg.

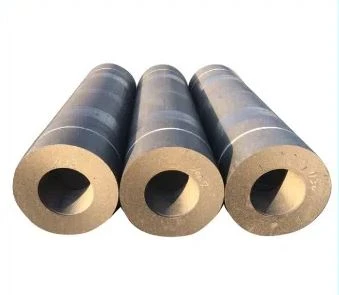

The product is black and cylindrical.

2,Index of RP Graphite Electrode

Item		Regular Power
		Φ200-Φ300		Φ350-Φ600
Resistivity μΩ•m ≤（Max）	Electrode	8.5
	Nipple	6.5
Bulk density g/cm3 ≥（min）	Electrode	1.53	1.52
	Nipple	1.69
Modulus of rupture Mpa ≥（min）	Electrode	8.5	7.0
	Nipple	15.0
Young’s modulus Gpa ≤（Max）	Electrode	9.3
	Nipple	14.0
Ash % ≤（Max）	Electrode	0.5
	Nipple	0.5
CTE(100-600℃) 100-6 /℃ ≤（Max）	Electrode	2.9
	Nipple	2.8

3,Additional note:
1) Small product size and specifications, high consumption rate per ton of steel
2) The products are used in ordinary power electric furnaces and other mining furnaces.

4,Product packaging:

use safe, firm and moisture-proof packing suitable for land and sea transportation

5,Our service:

1)Provide free technical advice for users

2)Free for users to provide product application description

3)Free for users to provide product configuration design scheme

4)Free for users to provide sample,for user testing

6,Our advantages:

1)Professional,with more than 20 years of refractory production and operation, stronger technical exchanges and services

2)We have our own Refractory material product production cooperation factory

3)We have our own Graphite Electrode product production cooperation factory

7,Our company promises to customers: to provide free technical exchanges and services with customers, and to provide samples to customers free of charge without any sample fees.

8,Achievements generated: Our company has previously shipped 100 tons to Australia.
