Antiskid Zirconium-containing Ceramic Roller

Antiskid Zirconium-containing Ceramic Roller

1350℃ ceramic roller is a high-temperature ceramic roller containing 7-15% ZrO2. Adding ZrO2 to alumina roller improves the service temperature, strength and wear resistance of the product. 1350 ℃ ceramic roller containing ZrO2 is suitable for roller kiln fired at higher temperature. The product is class 1 qualified product.

Send Inquiry

Download

Chat Now

Description

1,Description of Antiskid Zirconium-containing Ceramic Roller
The surface of the product is striped, which greatly improves the anti-skid performance of the product, makes the sintered product of transmission not easy to slide left and right and changes the direction of travel, and avoids the damage caused by collision. After adding ZrO2 powder into the product, the wear resistance,suddenly-changing temperature resistance, bending strength and flatness of the product are enhanced, and the use times of the product are effectively increased.

2,Index of Antiskid Zirconium-containing Ceramic Roller：

ITEM	JZHB-15
Al2O3 %	＞70
ZrO2 %	7-15
Fe2O3 %	＜0.3
Bulk density g/cm3	＞2.7
Apparent porosity %	≤19
Water absorption %	≤8
Bending strength Mpa	25℃ 70
Bending strength Mpa	1350℃ 60
Working temperature ℃	1430

3,Additional notes:

1)The surface of the product is striped shape, which effectively controls the random sliding of the product pressed on it.
2)The product has higher sintering temperature, lower water absorption and better wear resistance.

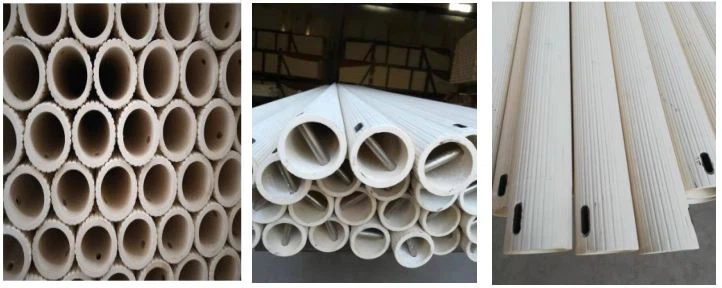

4,Product picture
